Description

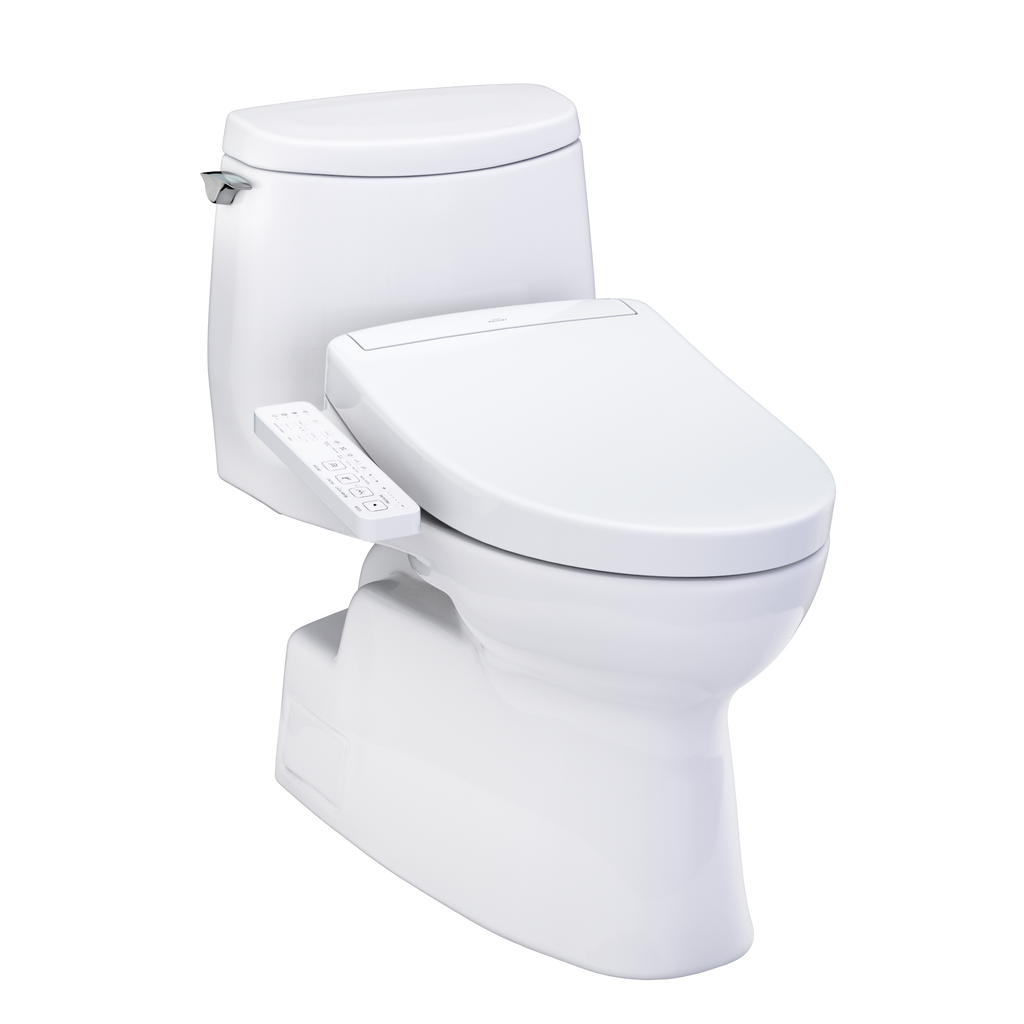

The TOTO WASHLET+ Carlyle II 1G One-Piece Elongated Toilet with the WASHLET+ S2 Bidet Seat in Cotton White offers a seamless blend of efficiency and comfort. Featuring a 1.0 GPF flush, this toilet conserves water while maintaining powerful performance. The WASHLET+ S2 bidet seat enhances hygiene with adjustable cleansing functions and a heated seat, providing a personalized and comfortable experience. This combination delivers a modern, water-saving solution designed for superior cleanliness and user convenience.
Components
- MW6143346CUFG (#01)
With CEFIONTECT ceramic glaze, WASHLET+ S2 with contemporary design
- CST614CUFGAT40 Elongated toilet with CEFIONTECT
- SW3346 WASHLET+ S2
SKU
MW6143346CUFG#01
California residents see Prop 65 WARNINGS
Features
- Concealed supply connection for seamless installation
- Ultra high-efficiency TORNADO FLUSH® system - 1.0 GPF (3.8 LPF)
- CEFIONTECT® ceramic glaze minimizes waste from sticking to porous ceramic surfaces
- Decorative one-piece with skirted design
- UNIVERSAL HEIGHT
- Chrome plated trip lever
- 12" Rough-in
- Elongated front bowl and WASHLET+ S2 set
- EWATER+® auto-cleans wand after every use
- PREMIST® automatically mists the bowl before each use
- Self-cleaning wand cleans itself inside and out before and after every use
- CLEAN RESIN® keeps wand and seat cleaner, more hygienic, and effortless to maintain
- Convenient arm control panel
- Night light illuminates the inside of the bowl
Specifications
| Water Use | 1.0 GPF (3.8 LPF) |
| Flush System | TORNADO FLUSH® |
| Min. Water Pressure | N/A |
| Water Surface | 6-7/8" x 9-3/4" |
| Trap Diameter | 2-1/8" |
| Rough-in | 12" (10" and 14" options available) |
| Trap Seal | 2-1/8" |
| Warranty | One Year Limited Warranty |
| Material | Vitreous China |
| Shipping Weight | CST614CUFGAT40: 106 lbs SW3346: 16 lbs |
| Shipping Dimensions |
CST614CUFGAT40 30" L x 18-1/4" W x 28-1/4" H1 x 20-3/4" H2 SW3346 24-3/8" L x 21" W x 7-7/16" H |
