Description

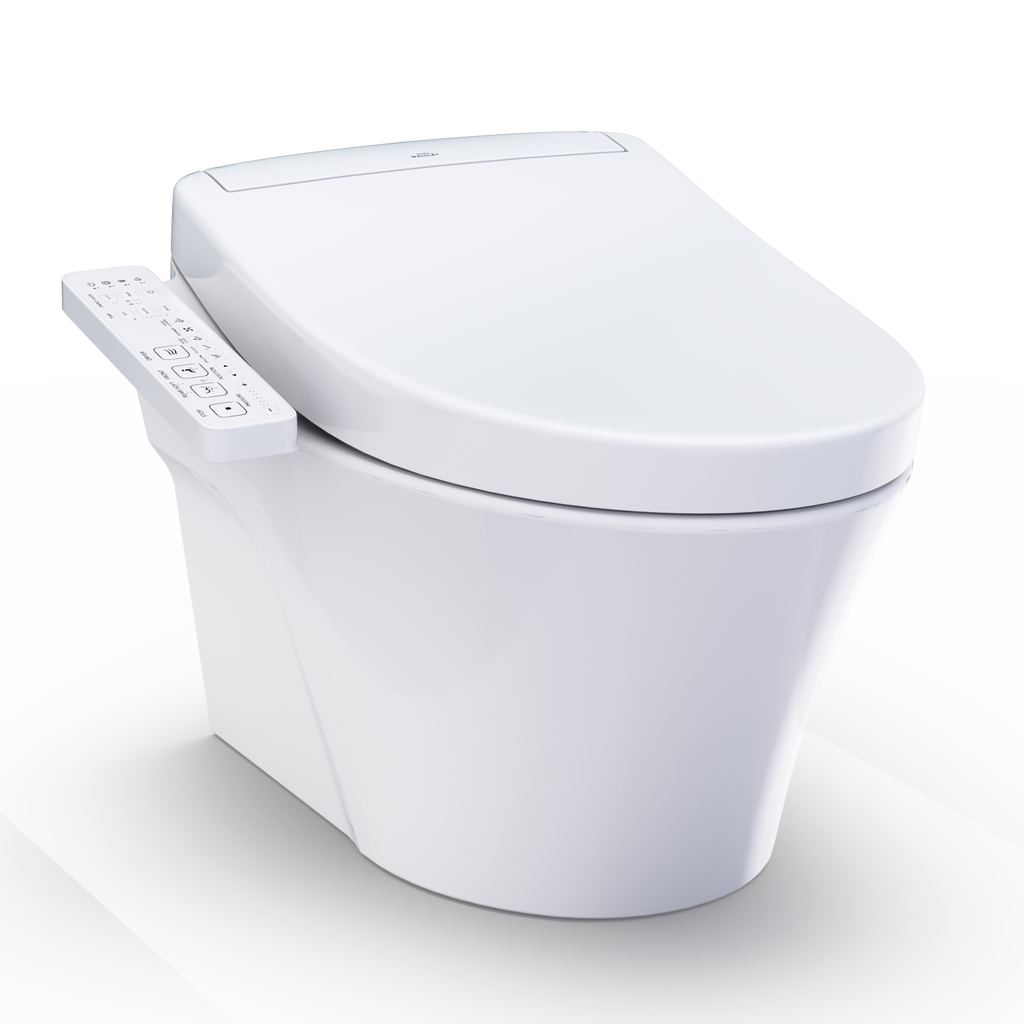

The TOTO WASHLET+ AP Wall-Hung Elongated Toilet combines cutting-edge hygiene technology with efficient water use and sleek design. Equipped with the WASHLET S2, it delivers customizable warm water cleansing for enhanced comfort and cleanliness. The DuoFit In-Wall Dual-Flush Tank System offers two flush options—0.9 and 1.28 gallons per flush—balancing water conservation and powerful performance. Finished in elegant matte silver, this system’s wall-hung configuration maximizes bathroom space and simplifies maintenance, making it an ideal solution for modern, efficient, and hygienic bathroom environments.
California residents see Prop 65 WARNINGS
Components
CWT4263346CMFG#MS AP WASHLET+ with S2
- CT426CFGT40#01 AP Wall-Hung Toilet
- WT173M In-Wall Tank System (Copper Pipe)
- SW3346#01 S2 WASHLET+ Elongated WASHLET
- THU805 WASHLET connection kit
- YT930#MS Matte Silver Basic Round Push Plate
SKU
CWT4263346CMFG#MS
Features
- Ultra high-efficiency DYNAMAX TORNADO FLUSH® system -1.28 GPF / 0.9 GPF (4.8 LPF / 3.4 LPF)
- CEFIONTECT® ceramic glaze minimizes waste from sticking to porous ceramic surfaces
- Universal Height
- Elongated shape front bowl
- Elongated front WASHLET toilet with WASHLET+ S2 set
- Adjustable 15”-19” mounting height
- Saves up to 9” of floor space compared to standard floor-mounted toilet
- Supports up to 880lbs
- Commercial 2” x 6” or optional residential installation with 2” x 4” wall studs with waste outlet kit
- Copper supply line
- Matte Silver Basic Round Push Plate
Specifications
| CT426CFGT40 | S2 | WT173M | |
| Water Use | 1.28 / 0.9 GPF (4.8 / 3.4 LPF) | NA | 1.28 GPF / 0.9 GPF (4.8 LPF / 3.4 LPF) |
| Flush System | DYNAMAX TORNADO FLUSH® | NA | Dual flushing |
| Min. Water Pressure | 8 psi (static) | NA | 8 psi (static) |
| Water Surface | 5-1/2” X 4-1/8” | NA | NA |
| Trap Diameter | 2-1/8” | NA | NA |
| Installation Height | 15” to 19” | NA | 15” to 19” |
| Trap Seal | 2-1/8” | NA | NA |
| Warranty | One Year Limited Warranty | One Year Limited Warranty | One Year Limited Warranty |
| Material | Vitreous China | NA | Various |
| Shipping Weight | 68 lbs | 16 lbs | 44 lbs |
| Shipping Dimensions | 22” L x 14.6” W x 16.5 H | 24-3/8"L x 21"W x 7-7/16"H | 47” L x 26-1/2” W x 5-3/4” H |
Product Specifications
Spec Sheet - CWT4263346CMFG#MS
Installation and Owner's Manual
