Description

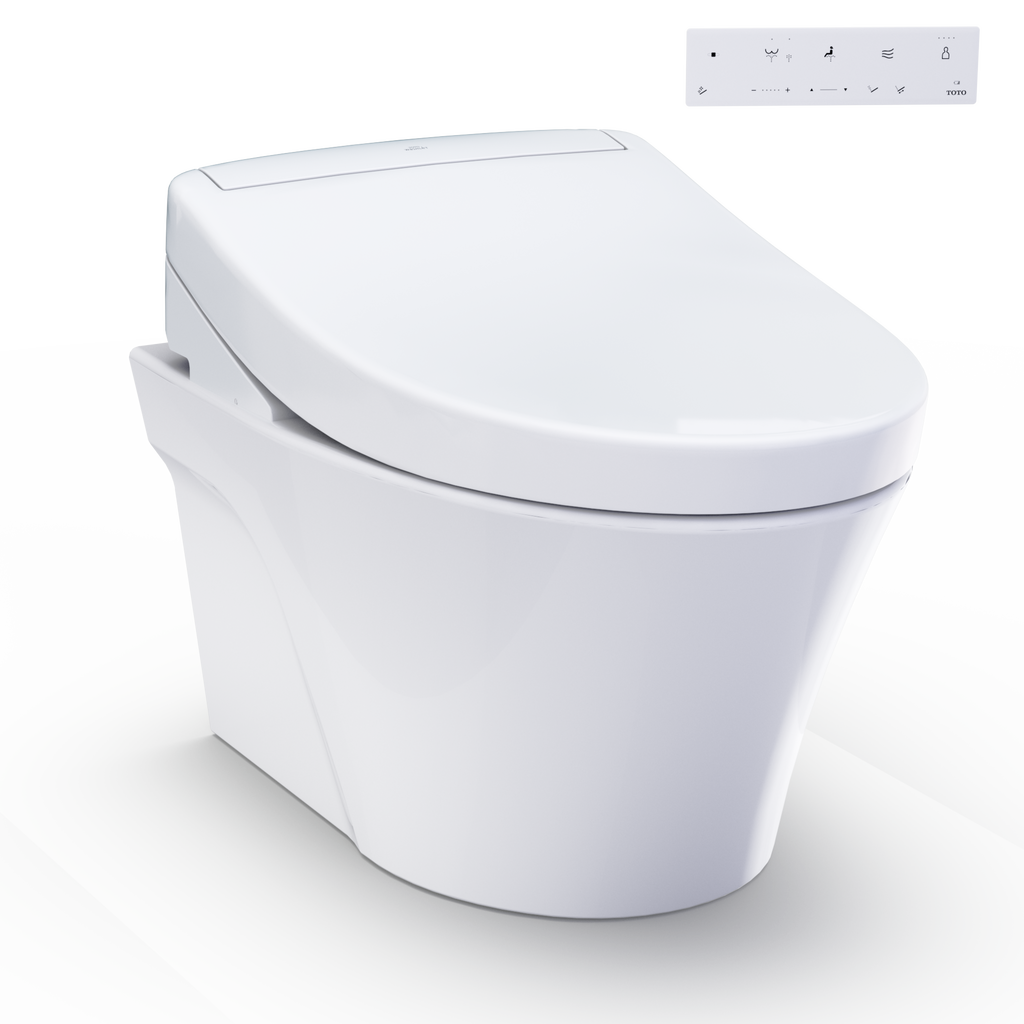

The TOTO WASHLET+ AP Wall-Hung Elongated Toilet paired with the advanced WASHLET S5 seat and DuoFit In-Wall Dual-Flush Tank System redefines bathroom efficiency and hygiene. Featuring dual flush options of 0.9 and 1.28 gallons per flush, it optimizes water conservation without compromising performance. The WASHLET S5 offers enhanced cleansing features with customizable settings for superior comfort. Its matte silver finish complements modern interiors, while the wall-hung design saves space and facilitates easier cleaning—perfect for sophisticated, efficient bathroom environments.
California residents see Prop 65 WARNINGS
Components
CWT4263446CMFG#MS AP WASHLET+ with S5
- CT426CFGT40#01 AP Wall-Hung Toilet
- WT173M In-Wall Tank System (Copper Pipe)
- SW3446#01 S5 WASHLET+ Elongated WASHLET
- THU805 WASHLET connection kit
- YT930#MS Matte Silver Basic Round Push Plate
SKU
CWT4263446CMFG#MS
Features
- Ultra high-efficiency DYNAMAX TORNADO FLUSH® system -1.28 GPF / 0.9 GPF (4.8 LPF / 3.4 LPF)
- CEFIONTECT® ceramic glaze minimizes waste from sticking to porous ceramic surfaces
- Universal Height
- Elongated shape front bowl
- Elongated front WASHLET toilet with WASHLET+ S5 set
- Adjustable 15”-19” mounting height
- Saves up to 9” of floor space compared to standard floor-mounted toilet
- Supports up to 880lbs
- Commercial 2” x 6” or optional residential installation with 2” x 4” wall studs with waste outlet kit
- Copper supply line
- Matte Silver Basic Round Push Plate
Specifications
| CT426CFGT40 | S5 | WT173M | |
| Water Use | 1.28 / 0.9 GPF (4.8 / 3.4 LPF) | NA | 1.28 GPF / 0.9 GPF (4.8 LPF / 3.4 LPF) |
| Flush System | DYNAMAX TORNADO FLUSH® | NA | Dual flushing |
| Min. Water Pressure | 8 psi (static) | NA | 8 psi (static) |
| Water Surface | 5-1/2” X 4-1/8” | NA | NA |
| Trap Diameter | 2-1/8” | NA | NA |
| Installation Height | 15” to 19” | NA | 15” to 19” |
| Trap Seal | 2-1/8” | NA | NA |
| Warranty | One Year Limited Warranty | One Year Limited Warranty | One Year Limited Warranty |
| Material | Vitreous China | NA | Various |
| Shipping Weight | 68 lbs | 15.4 lbs | 44 lbs |
| Shipping Dimensions | 22” L x 14.6” W x 16.5 H | 24-3/8"L x 17-9/16"W x 7-7/16"H | 47” L x 26-1/2” W x 5-3/4” H |
Product Specifications
Spec Sheet - CWT4263446CMFG#MS
Installation and Owner's Manual
