Description

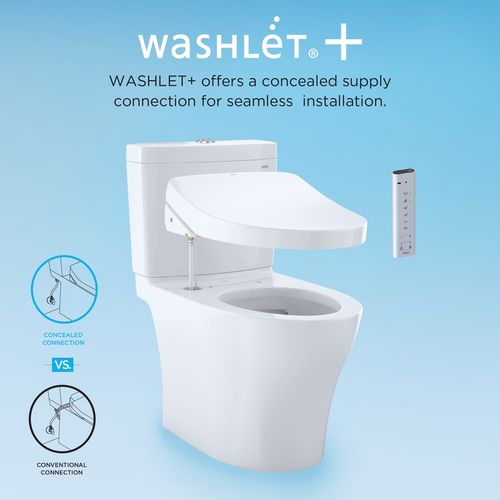

The WASHLET+ system neatly conceals the WASHLET power cord and water supply hose for a clean installation. The system is comprised of the S300e WASHLET+ bidet seat AND UltraMax II Toilet which are specially designed for a seamless installation that compliments your bathroom's décor.
Components
MW604574CUFG#01 UltraMax II 1G one piece toilet and S300e WASHLET+
- CST604CUFGT20 UltraMax II 1G Toilet with CEFIONTECT glaze
- SW574T20 TOTO S300e WASHLET+
SKU
MW604574CUFG#01
California residents see Prop 65 WARNINGS
Features
- WASHLET+® WASHLET bidet seat and toilet, specially designed to conceal the WASHLET water supply and power cord
- EWATER+®: a safe and powerful compound, cleaning the wand and bowl after every use; PREMIST™ sprays the bowl before each use to help prevent waste from adhering
- Front and rear warm water washing with five adjustable temperature and pressure controls. Oscillating or pulsing stream option
- Tankless, instantaneous water heating means never running out of warm water
- Remote control operated with easy to read illuminated touch pad with 2 user memory to save preferred settings
- SoftClose® heated seat, automatic air deodorizer, and warm air dryer with five adjustable temperatures

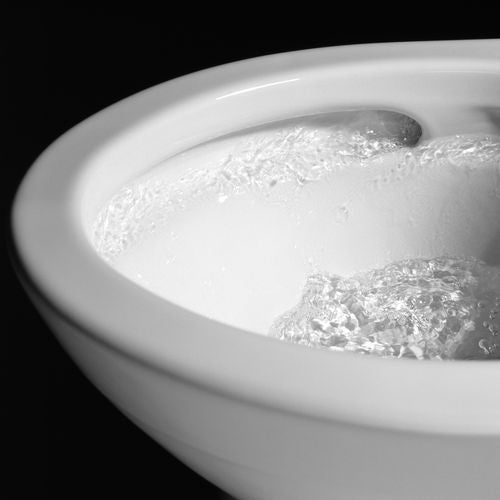

- 1.0 gallons per flush 1G technology with TORNADO FLUSH® system with CEFIONTECT™ glaze to reduce bowl friction
- One-piece, Universal Height elongated bowl; ADA, WaterSense®, CALGreen, and CEC compliant
- Included parts: WASHLET installation hardware, tank to bowl gasket, tank to bowl hardware, and toilet bolt caps; Purchased separately: wax ring, toilet mounting bolts, and water supply lines
- Compatible with T20 WASHLET+ components only
Specifications
- Water Use: 1.0GPF/3.8LPF
- Flush System: Tornado Flush®
- Min. Water Pressure: 8 psi (static)
- Water Surface: 7-1/8" x 9-1/8"
- Trap Diameter: 2-1/8"
- Rough-in: 12"
- Trap Seal: 2-1/8"
- Warranty One Year Limited Warranty
- Material Vitreous china
- Shipping Weight
- CST604CUFGT20: 99lbs.
- SW574T20: 13.5lbs.
- Shipping Dimensions
- CST604CUFGT20
- 32"L x 20"W x 17-3/4" H1 x 28-3/4" H2
- SW574T20
- 23"X 19-1/4" X 5-1/2
Product Specifications
Parts and Service Information
Installation Manual Connect + Washlet
Installation Manual One Piece Non Skirted Toilet
