Description
The WASHLET+ system neatly conceals the WASHLET power cord and water supply hose for a clean installation. The system is comprised of the TOTO S500e WASHLET+ bidet seat AND Drake Toilet which are specially designed for a seamless installation that compliments your bathroom's décor.
Components
- MW7463046CSMGA#01: With CEFIONTECT ceramic glaze, WASHLET+ S500e
with contemporary design and Auto Flush
- CT746CUGT40: Elongated bowl with CEFIONTECT
- ST746SMA: Tank and cover only
- SW3046AT40: WASHLET+ S500e
- THU765: Auto Flush Kit
SKU
MW7463046CSMGA#01
California residents see Prop 65 WARNINGS
Features
- Concealed supply connection for seamless installation
- DYNAMAX TORNADO FLUSH® utilizes 360º cleaning
power to reach every part of the bowl
- Dual flush 1.6 & 0.8 GPF (6.0 & 3.0 LPF)
- CEFIONTECT® ceramic glaze prevents debris and mold
from sticking to ceramic surfaces
- Design of the bowl reduces water flow resistance
resulting in a quieter flushing sound
- 12" Rough-in
- Chrome plated trip lever
- Elongated front bowl and WASHLET+ S500e and tank set
- EWATER+® auto-cleans wand and bowl
- On-demand remote function cleans wand with EWATER+
- PREMIST of bowl before each use

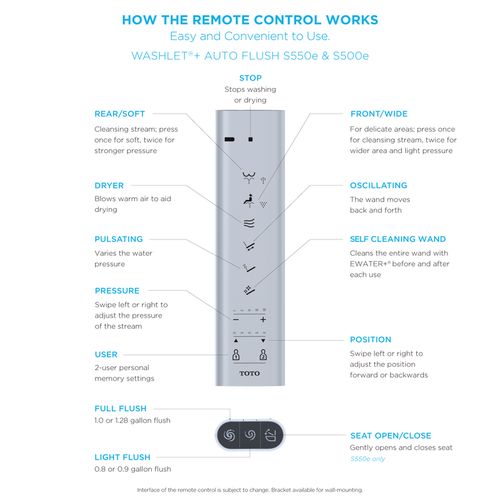

- Remote control operated
- Auto Flush available as upgrade
- Semi-concealed trapway
Specifications
| Water Use | 1.6 & 0.8 GPF (6.0 & 3.0 LPF) |
| Flush System | DYNAMAX TORNADO FLUSH® |
| Min. Water Pressure | 8 psi (Flowing) |
| Water Surface | 5-5/8" x 4-1/8" |
| Trap Diameter | 2-1/2" |
| Rough-in | 12" |
| Trap Seal | 2-1/8" |
| Warranty | One Year Limited Warranty |
| Material | Vitreous China |
| Shipping Weight | CT746CUGT40 66 lbs. ST746SMA 35 lbs. |
| Shipping Dimensions |
CT746CUGT40 18-3/4" L x 10-1/2" W x 18-1/8"H ST746SMA 18-3/4" L x 8-3/8" W x 16"H |
Product Specifications
Spec Sheet - MW7463046CSMGA#01
Parts and Service Information
Installation Instructions - MW7463046CSMGA#01
