Description

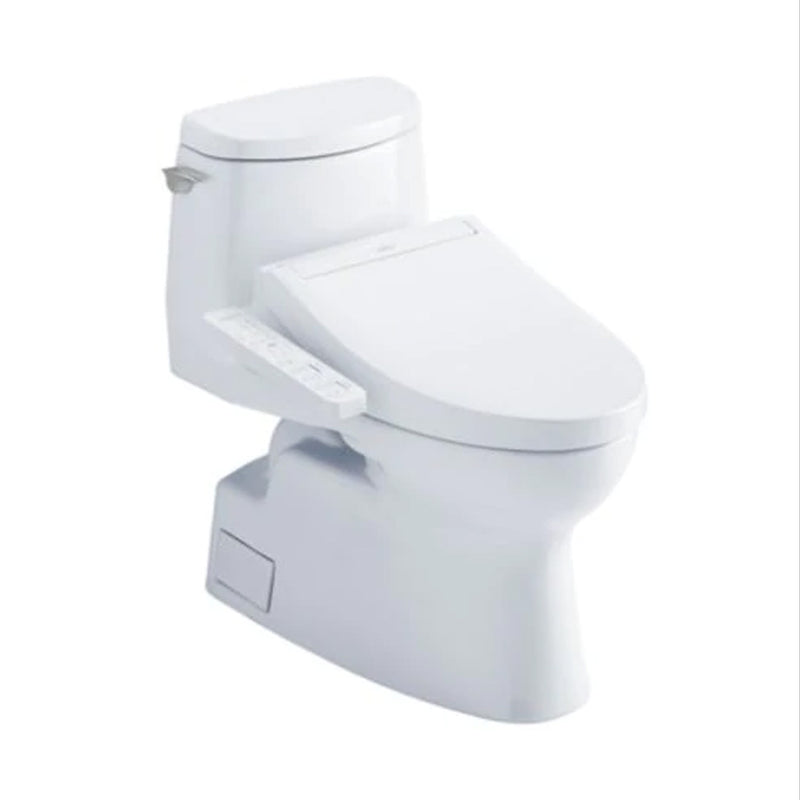

The WASHLET+ system neatly conceals the WASHLET power cord and water supply hose for a clean installation. The system is comprised of the TOTO C2 WASHLET+ bidet seat AND Carlyle II 1G Toilet which are specially designed for a seamless installation that compliments your bathroom's décor.
Components
- MW6143074CUFG#01: Carlyle II 1G Toilet with CEFIONTECT ceramic glaze and C2 WASHLET+
- CST614CUFGAT40: Elongated toilet with CEFIONTECT
- SW3074T40: WASHLET+ C2
SKU
MW6143074CUFG#01
California residents see Prop 65 WARNINGS
Features
- Concealed supply connection for seamless
installation
- Ultra high-efficiency TORNADO FLUSH® system,
(1.0GPF/3.8LPF)
- Skirted design
- CEFIONTECT® glaze prevents debris from sticking
to ceramic surfaces for easy cleaning
- Universal Height
- Elongated bowl
- Decorative one-piece design with high-profile tank
- 12" rough-in sold separately
- Optional 10"; 14" Uni-fit rough-in
- Chrome trip lever
- See spec sheet SW3074T40 for WASHLET features
Specifications
| Water Use | 1.0 GPF (3.8 LPF) |
| Flush System | TORNADO FLUSH® |
| Min. Water Pressure | 8 psi (Flowing) |
| Water Surface | 6-7/8" x 9-3/4" |
| Trap Diameter | 2-1/8" |
| Rough-in | 12" (10" & 14" Optional) |
| Trap Seal | 2-1/8" |
| Warranty | One Year Limited Warranty |
| Material | Vitreous China |
| Shipping Weight |
CST614CUFGAT40 106 lbs SW3074T40 17 lbs |
| Shipping Dimensions |
CST614CUFGAT40 32"L x 20"W x 17-3/4" H1 x 28-3/4" H2 SW3074T40 24-3/8" x 20-3/4" x 9-1/16" |
