Description
Components
MW7463056CUMFGA#01 Drake 1G toilet with CEFIONTECT ceramic glaze and WASHLET+ S550e with auto flush
- CT746CUFGT40 Drake 1G Toilet with elongated bowl and CEFIONTECT finish
- ST746UMA Tank and cover only
- SW3056AT40 WASHLET+ S550e - Auto Flush compatible
SKU
Features
- System includes toilet and WASHLET

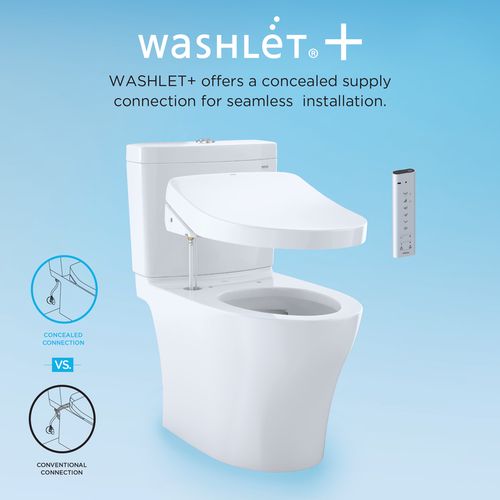

- Concealed supply connection for seamless installation
- DYNAMAX TORNADO FLUSH® system, ultra high-efficiency
- CEFIONTECT® ceramic glaze prevents debris and mold for sticking to ceramic surfaces
- Semi-concealed trapway
- Quiet Flush
- Elongated front bowl and tank set with WASHLET
- Universal height
- Dual Flush operation
- 12" Rough-in

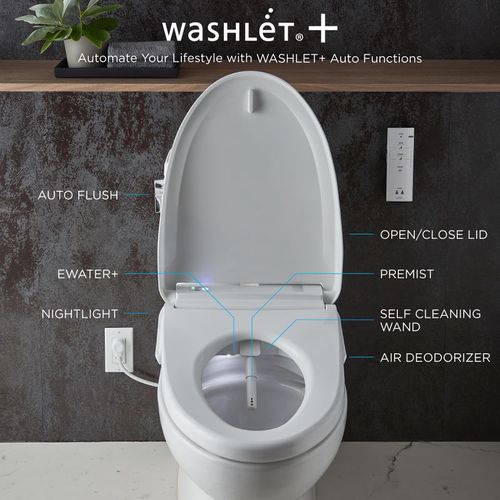

- EWATER+® on wand and bowl
- PREMIST of bowl before use
- Remote control operated
- Front and rear warm water cleansing with adjustable temperature and pressure control
- Auto open & close lid
- Heated seat with temperature control
- Automatic air deodorizer
- Warm Air Dryer
- 2 User memory
- Night light
- Quick release feature
- Auto Flush
- Chrome plated trip lever included
Specifications
| Water Use | 1.0 & 0.8 GPF (3.8 & 3.0 LPF) |
| Flush System | DYNAMAX TORNADO FLUSH® |
| Min. Water Pressure | 8 psi (Flowing) |
| Water Surface | 5-5/8" x 4-1/8" |
| Trap Diameter | 2-1/2" |
| Rough-in | 12" |
| Trap Seal | 2-1/8" |
| Warranty | One Year Limited Warranty |
| Material | Vitreous China |
| Shipping Weight | CT746CUFGT40 66 lbs. ST746UMA 35 lbs. |
| Shipping Dimensions |
CT746CUFGT40 18-3/4" L x 10-1/2" W x 18-1/8"H ST746UMA 18-3/4" L x 8-3/8" W x 16"H |
Product Specifications
Spec Sheet - MW7463056CUMFGA#01
Parts and Service Manual
Installation Instructions - MW7463056CUMFGA#01
