Description

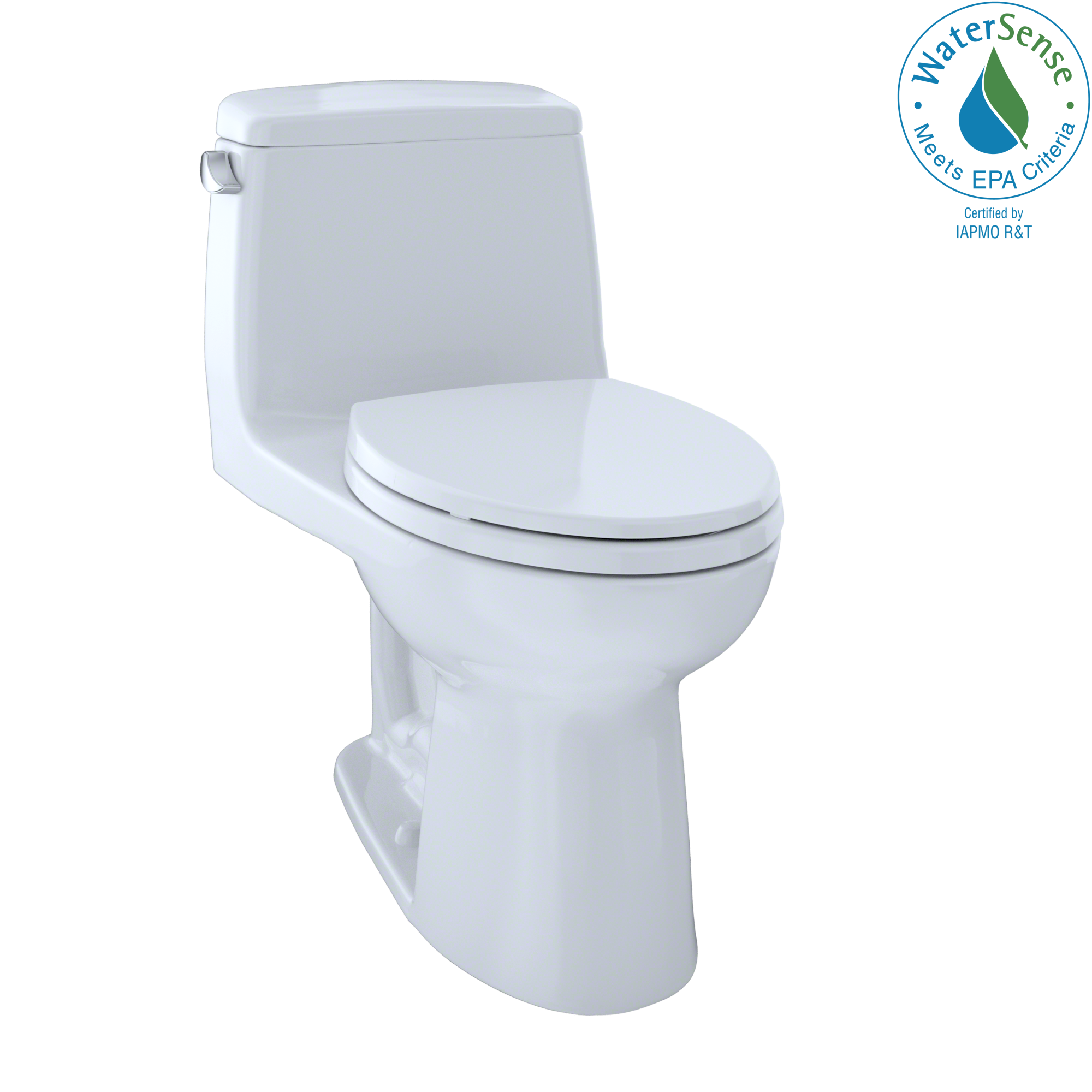

The ECO ULTRAMAX® MS854114EL#01 ONE-PIECE TOILET offers 1.28 GPF efficiency and ADA compliance in an elegant elongated bowl design. It includes a SoftClose seat and provides superior performance and long-term reliability.
SKU
MS854114EL#01 - Cotton White
California residents see Prop 65 WARNINGS
Components
- CST854EL#01- Toilet only
- SS114 SoftClose seat
Features
- E-Max® flushing system, high efficiency (1.28GPF/4.8LPF)
- One-piece decorative toilet with high-profile tank
- Elongated front bowl with SoftClose® seat (SS114)
- 12" Rough-in
- ADA compliant (when installed with trip lever located on the approach side)
- Chrome trip lever
Specifications
| Water Use | 1.28GPF/4.8LPF |
| Flush System | E-Max® |
| Min. Water Pressure | 8 psi (static) |
| Water Surface | 10-1/4" x 8-1/4" |
| Trap Diameter | 2-1/8" |
| Rough-in | 12" |
| Trap Seal | 2-3/8" |
| Warranty | One Year Limited Warranty |
| Material | Vitreous China |
| Shipping Weight | 117 lbs |
| Shipping Dimensions |
30" L x 19" W x 29-5/8" H1 x 18-1/2" H2 |
Product Specifications
Parts and Service Information
Spare Parts Manual - MS854114EL#01
Installation Manual - MS854114EL#01
