Description
The WASHLET+ system neatly conceals the WASHLET power cord and water supply hose for a clean installation. The system is comprised of the TOTO S550e WASHLET+ bidet seat AND Drake 1G Toilet which are specially designed for a seamless installation that compliments your bathroom's décor.
Components
- MW7463056CUMGA#01: With CEFIONTECT ceramic glaze, WASHLET+ S500e with contemporary design and Auto Flush
- CT746CUGT40: Elongated bowl with CEFIONTECT
- ST746UMA: Tank and cover only
- SW3056AT40: WASHLET+ S500e
- THU765: Auto Flush Kit
SKU
MW7463056CUMGA#01
California residents see Prop 65 WARNINGS
Features
- System includes toilet and WASHLET
- Concealed supply connection for seamless installation
- DYNAMAX TORNADO FLUSH system, ultra high-efficiency
- CeFiONtect ceramic glaze prevents debris and mold for sticking to ceramic surfaces
- Semi-concealed trapway
- Quiet Flush
- Elongated front bowl and tank set with WASHLET
- Dual Flush operation
- 12” Rough-in
- EWATER+ on wand and bowl
- PREMIST of bowl before use
- Auto open/close lid

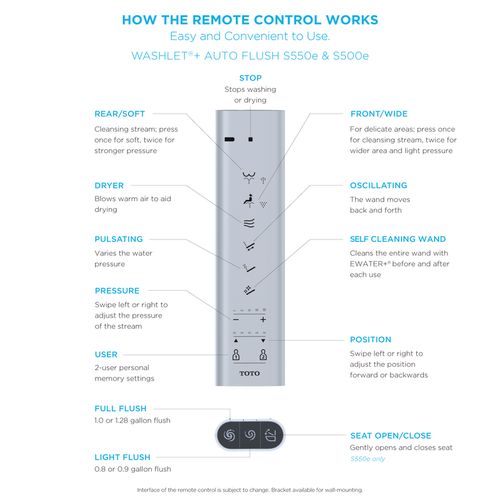

- Remote control operated
- Front and rear warm water cleansing with adjustable temperature and pressure control
- Heated seat with temperature control
- Automatic air deodorizer
- Warm Air Dryer
- 2 User memory
- Night light
- Quick release feature
Specifications
| Water Use | 1.0 & 0.8 GPF (3.8 & 3.0 LPF) |
| Flush System | DYNAMAX TORNADO FLUSH® |
| Min. Water Pressure | 8 psi (Flowing) |
| Water Surface | 5-5/8" x 4-1/8" |
| Trap Diameter | 2-1/2" |
| Rough-in | 12" (10" & 14" Optional) |
| Trap Seal | 2-1/8" |
| Warranty | One Year Limited Warranty |
| Material | Vitreous China |
| Shipping Weight | CT746CUGT40 66 lbs. ST746UMA 35 lbs. |
| Shipping Dimensions |
CT746CUGT40 18-3/4" L x 10-1/2" W x 18-1/8"H ST746UMA 18-3/4" L x 8-3/8" W x 16"H |
Product Specifications
Spec Sheet - MW7463056CUMGA#01
Installation Manual
Installation Instructions - MW7463056CUMGA#01
