Description
The TOTO Washlet+ S500e (SW3046AT40 / SW3044AT40) is TOTO's luxury bidet seat designed exclusively for use with their T40 Washlet+ toilets. The S500e and S500e+ are the exact same in terms of bidet features and functions, but the only difference is that the electrical cord and the water supply line will be located underneath the bidet instead of coming out of the left side when facing the toilet. Since the electrical cord and water supply house are located underneath the bidet seat, then the S500e+ washlet is only compatible with TOTO Washlet+ T40 toilets. These T40 toilets are special to the TOTO brand and have a concealed dedicated trapway for the electrical cord and supply hose which makes your toilet in conjunction with the bidet seat look like an integrated unit.
Note: This is not meant for use with non TOTO Washlet+ T40 toilets.
California residents see Prop 65 WARNINGS
SKUs

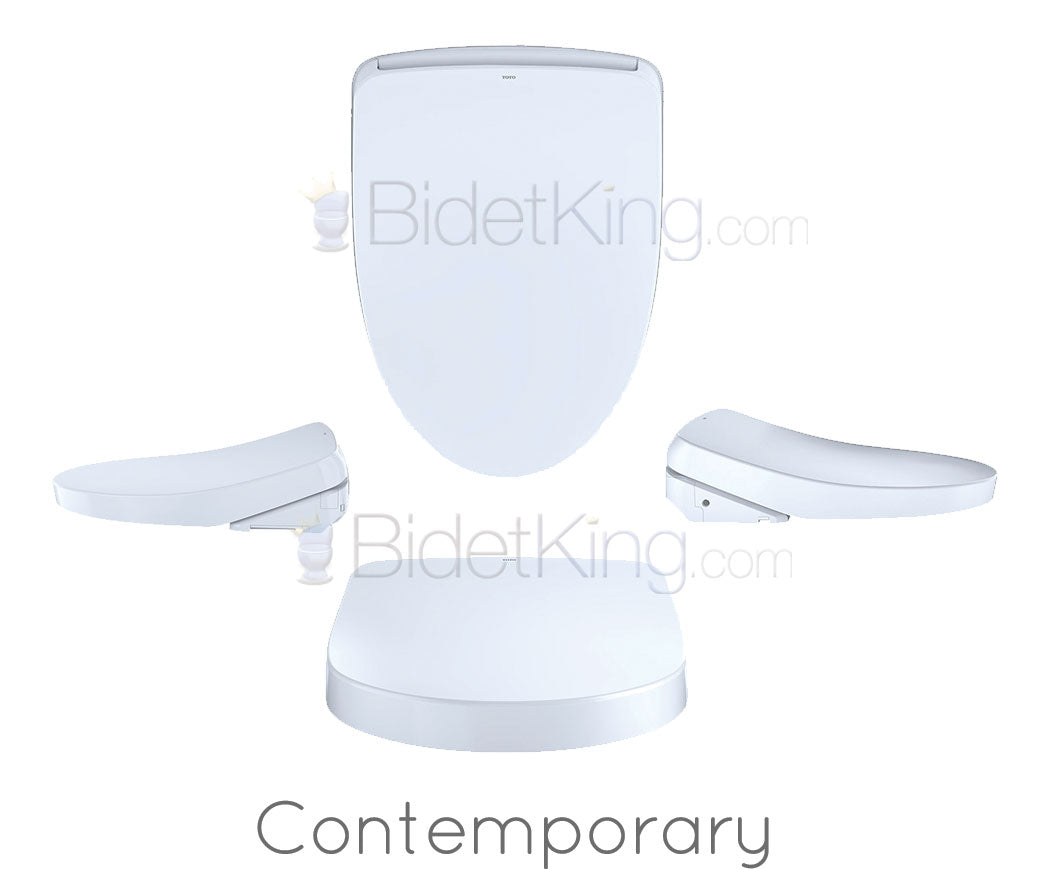

SW3046AT40#01 Washlet+ S500e Contemporary Design Cotton White Auto Flush Ready (doesn't include auto flush kit)

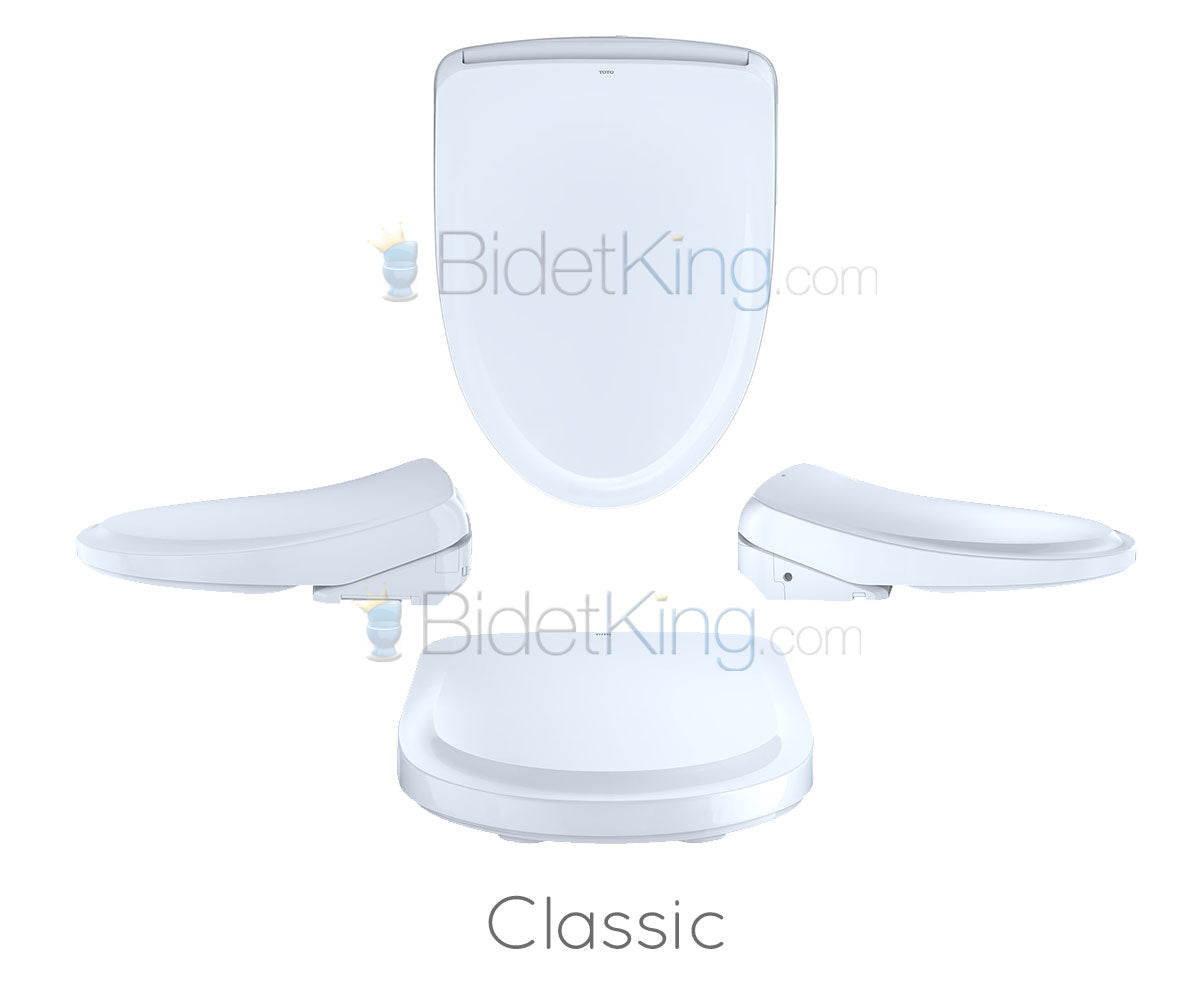

SW3044AT40#01 Washlet+ S500e Classic Design Cotton White Auto Flush Ready (doesn't include auto flush kit)
With no electrical cord or water supply hose in sight, this washlet in combination with a TOTO Washlet+ T40 toilet provides a great aesthetic to any bathroom. This combination does provide an integrated look, but it does not have a auto-flush function that some fully integrated toilets might have.
Features and Functions

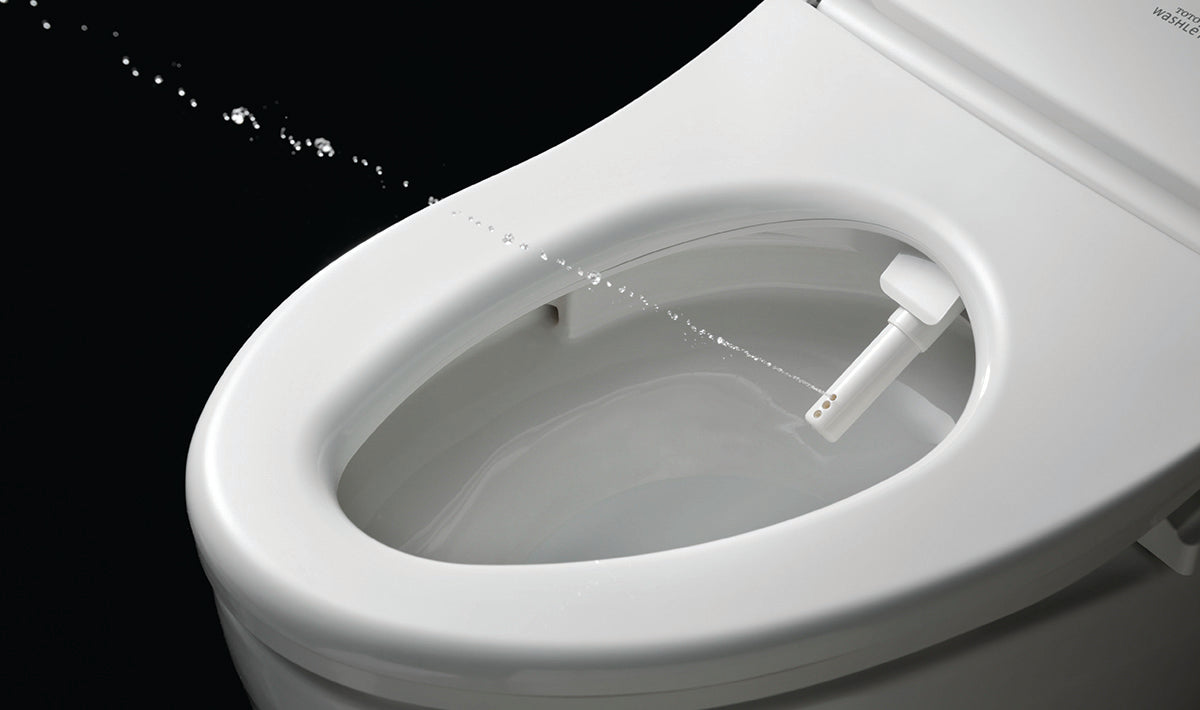

Gentle Aerated, Warm Water, Dual Action Cleansing Spray
The main function of the WASHLET w/ soft and hard sprays.
Instant Water Heating System
For continuous warm water and energy saving.

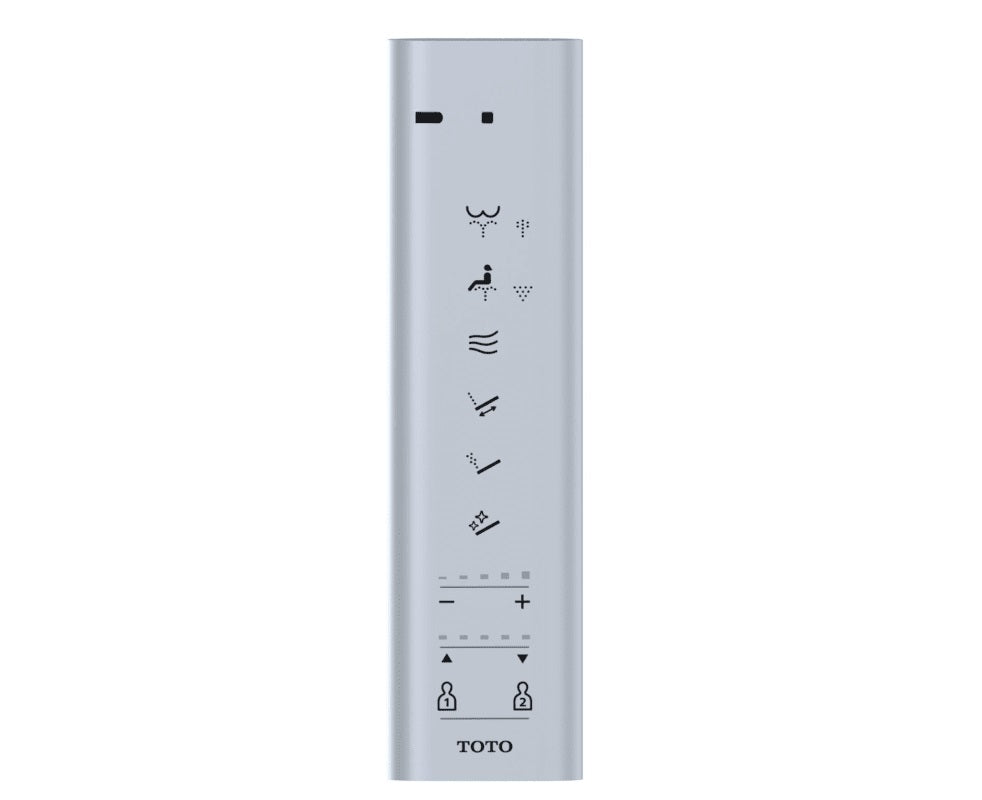

Convenient Slim Wireless Remote Control
Wall mountable with illuminated touch pad.
Adjustable Water Temperature and Pressure
Select the temperature and pressure that's right for you.
Oscillating or Pulsating Functions
For maximum comfort, take advantage of the oscillating or pulsating spray patterns.
Hands Free Dryer
Warm air drying with adjustable temperature (5 levels).
Rear Spray (Soft)
A soft, comfortable spray.
Rear Cleanse (Hard)
Warm water spray with adjustable water temperature and pressure.
Wide Front Spray (Soft)
A spray with a larger radius to cover more space.
Front Cleanse (Hard)
Warm water spray with adjustable water temperature and pressure.
Heated Seat
Comforting, warm seat.

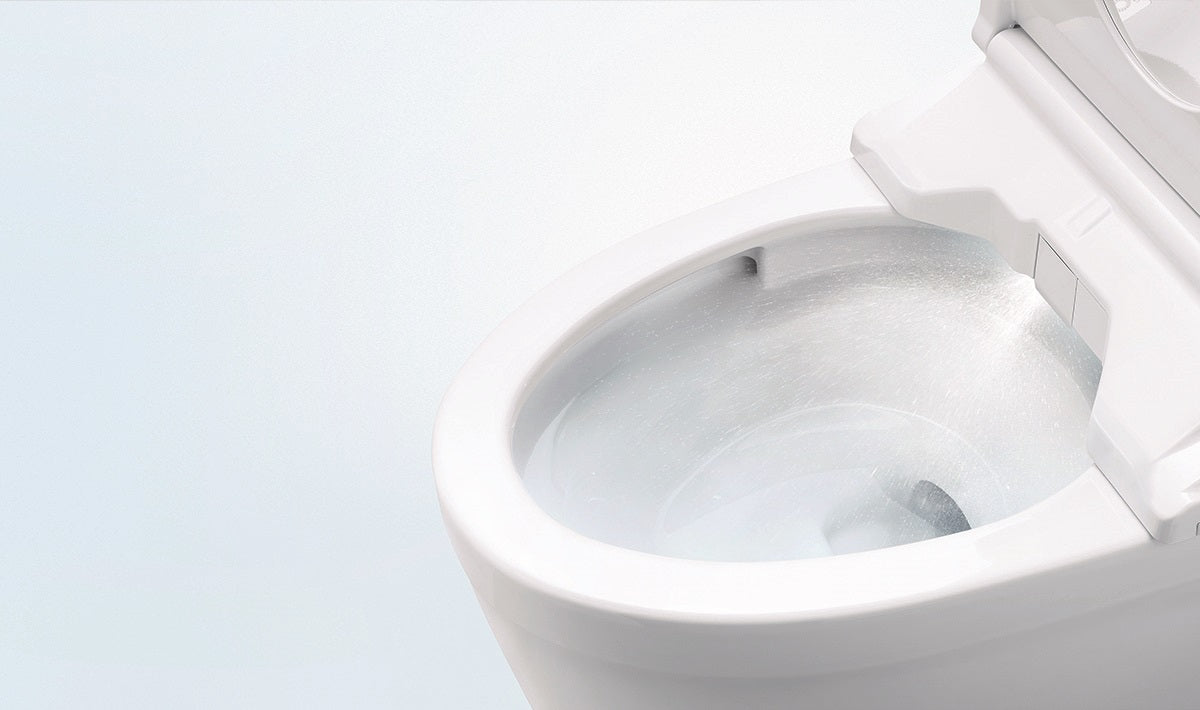

Ewater+
Eco-friendly, electrolyzed water spray that keeps the bowl cleaner.
Self-cleaning Wand
Wand is cleaned before and after every use.
Automatic Air Deodorizer
Air is filtered to help remove odor.
Premist
Water spray that wets the bowl before use.
User Presets
Save settings for 2 users.
Specifications
| Power Rating | AC 120 V 60 Hz |
| Power Consumption | 1288W |
| Max Power Consumption |
1444W |
| Power Cord Length | 3.94 ft (1.2 m) |
| Spray Volume | Rear Cleansing: 0.08 – 0.11 gal/min Rear Soft Cleansing: 0.08 – 0.11 gal/min Front Cleansing: 0.08 – 0.11 gal/min Wide Front Cleansing: 0.08 – 0.11 gal/min |
| Spray Features | Adjustable Surface Temp: 86 – 104 ºF (30 – 40 ºC) Safety Device: Temperature Fuse |
| Warm Air Dryer Features |
Adjustable Air Temp: 95 – 140 ºF (35 – 60 ºC) Air?ow Volume: 10.24 ft3/min (0.29 m3/min) Safety Device: Temperature Fuse |
| Heated Seat Features |
Adjustable Surface Temp: 82 – 97 ºF (28 – 36 ºC) Safety Device: Temperature Fuse |
| Water Supply Pressure |
Minimum: 7.25 PSI (Dynamic) Maximum: 108.75 PSI (Static) |
| Ambient Temp. | 32 – 104 ºF (0 – 40 ºC) |
| Warranty | One Year Limited Warranty |
| Shipping Weight | 16 lbs |
| Shipping Dimensions |
23-1/2"L x 18-1/2"W x 6-1/2"H |
