Description

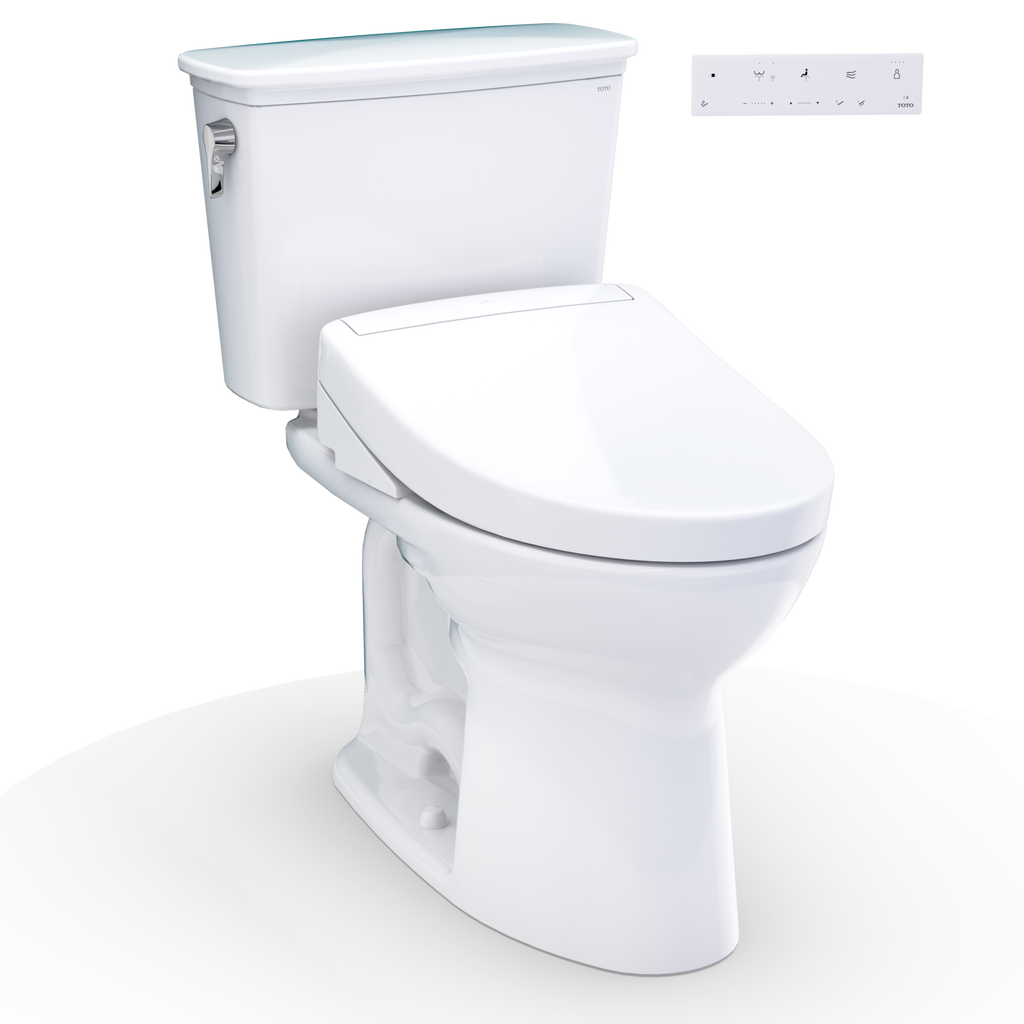

The TOTO Drake Transitional WASHLET+ features a two-piece elongated design with a 10-inch rough-in, optimized for efficient installation. It utilizes a 1.28 GPF Tornado Flush system that delivers powerful, water-saving performance. The universal height design enhances comfort and accessibility. Equipped with the advanced S5 Bidet Seat, it offers customizable warm water cleansing, a heated seat, and air drying for superior hygiene and comfort. Finished in cotton white, this model combines reliable flushing technology with sophisticated bidet functionality for an elevated bathroom experience.
Components
- MW7863446CEFG.10 (#01)
With CEFIONTECT ceramic glaze, WASHLET+ S5 with contemporary design
- C776CEFGT40.10 Elongated bowl with CEFIONTECT
- ST786EA Tank and cover only
- SW3446 WASHLET+ S5
SKU
MW7863446CEFG.10#01
California residents see Prop 65 WARNINGS
Features
- Concealed supply connection for seamless installation
- High-efficiency TORNADO FLUSH® system - 1.28 GPF (4.8 LPF)
- Transitional style tank
- CEFIONTECT® ceramic glaze minimizes waste from sticking to porous ceramic surfaces
- 10" Rough-in, supply line sold separately
- UNIVERSAL HEIGHT
- Chrome plated trip lever
- Elongated front bowl toilet and tank with WASHLET+ S5 set
- EWATER+® auto-cleans wand after every use
- PREMIST® automatically mists the bowl before each use
- Self-cleaning wand cleans itself inside and out before and after every use
- CLEAN RESIN® keeps wand and seat cleaner, more hygienic, and effortless to maintain
- Multifunction remote control with personalized memory settings for up to 4 users
- Night light illuminates the inside of the bowl
Specifications
| Water Use | 1.28 GPF (4.8 LPF) |
| Flush System | TORNADO FLUSH® |
| Min. Water Pressure | 8 psi (Flowing) |
| Water Surface | 9" x 6-7/8" |
| Trap Diameter | 2-1/8" |
| Rough-in | 10" |
| Trap Seal | 2-1/8" |
| Warranty | One Year Limited Warranty |
| Material | Vitreous China |
| Shipping Weight | C776CEFGT40.10: 62 lbs ST786EA: 34 lbs SW3446: 15.4 lbs |
| Shipping Dimensions |
C776CEFGT40.10 30-1/8" L x 15-1/4" W1 x 10-7/8" W2 x 17-3/4" H ST786EA 20" L x 9-3/8" W x 15-5/8" H SW3446 24-3/8" L x 17-9/16" W x 7-7/16" H |
Product Specifications
Spec Sheet - MW7863446CEFG.10#01
Parts and Service Information
Installation Manual - MW7863446CEFG.10#01
