Description

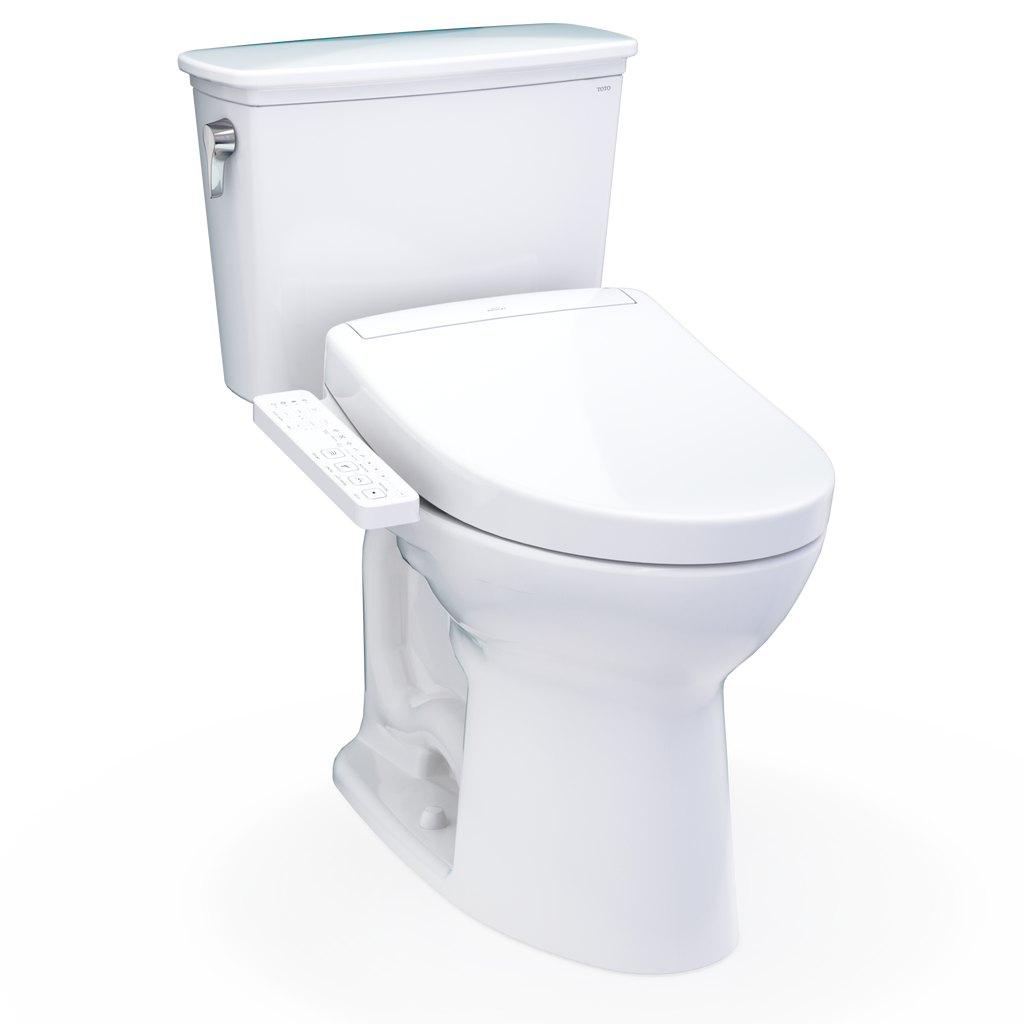

The TOTO Drake Transitional WASHLET+ is a two-piece elongated toilet designed for a 10-inch rough-in, combining efficient performance with modern comfort. It features a 1.28 GPF Tornado Flush system that ensures powerful, water-saving cleaning. The universal height design promotes ease of use, while the integrated S2 Bidet Seat offers customizable hygiene with warm water cleansing, heated seating, and air drying. Finished in cotton white, this model delivers advanced flushing technology and enhanced personal comfort for a refined bathroom experience.
Components
- MW7863346CEFG.10 (#01)
With CEFIONTECT ceramic glaze, WASHLET+ S2 with contemporary design
- C776CEFGT40.10 Elongated bowl with CEFIONTECT
- ST786EA Tank and cover only
- SW3346 WASHLET+ S2
SKU
MW7863346CEFG.10#01
California residents see Prop 65 WARNINGS
Features
- Concealed supply connection for seamless installation
- High-efficiency TORNADO FLUSH® system - 1.28 GPF (4.8 LPF)
- Transitional style tank
- CEFIONTECT® ceramic glaze minimizes waste from sticking to porous ceramic surfaces
- 10" Rough-in, supply line sold separately
- UNIVERSAL HEIGHT
- Chrome plated trip lever
- Elongated front bowl toilet and tank with WASHLET+ S2 set
- EWATER+® auto-cleans wand after every use
- PREMIST® automatically mists the bowl before each use
- Self-cleaning wand cleans itself inside and out before and after every use
- CLEAN RESIN® keeps wand and seat cleaner, more hygienic, and effortless to maintain
- Convenient arm control panel
- Night light illuminates the inside of the bowl
Specifications
| Water Use | 1.28 GPF (4.8 LPF) |
| Flush System | TORNADO FLUSH® |
| Min. Water Pressure | 8 psi (Flowing) |
| Water Surface | 9" x 6-7/8" |
| Trap Diameter | 2-1/8" |
| Rough-in | 10" |
| Trap Seal | 2-1/8" |
| Warranty | One Year Limited Warranty |
| Material | Vitreous China |
| Shipping Weight | C776CEFGT40.10: 62 lbs ST786EA: 34 lbs SW3346: 16 lbs |
| Shipping Dimensions |
C776CEFGT40.10 30-1/8" L x 15-1/4" W1 x 10-7/8" W2 x 17-3/4" H ST786EA 20" L x 9-3/8" W x 15-5/8" H SW3346 24-3/8" L x 21" W x 7-7/16" H |
Product Specifications
Spec Sheet - MW7863346CEFG.10#01
Parts and Service Information
Installation Manual - MW7863346CEFG.10#01
